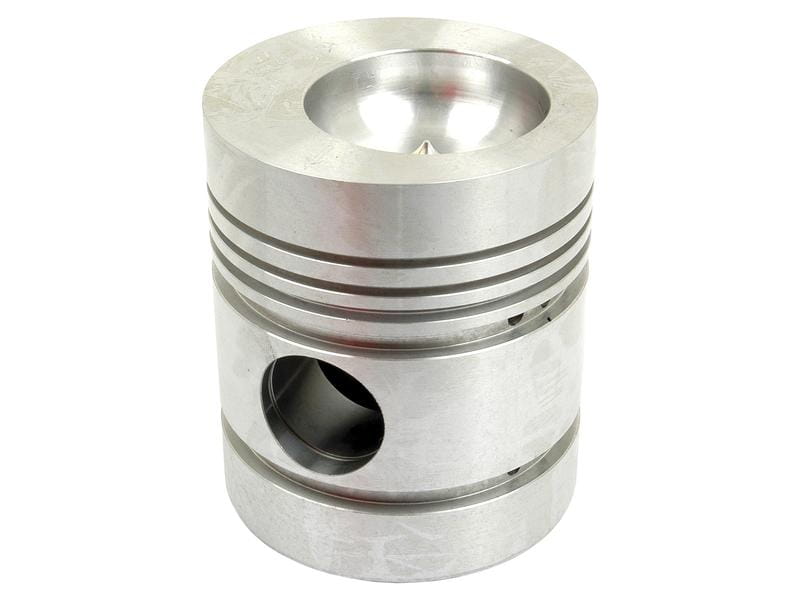

Tłok silnikowy S.40405

Tłok silnikowy Sparex S.40405

• Chamber TypeB3
• Crown TypeDish Top
• Długość tłoka, mm109.43
• Głębokość komory18.26
• ilość pierścieni5
• Korona90.83
• Perkins Build ListPerkins Build List: CE08545, JE21315*, 08557, 20304, 20369, 20405, 20425, 20934, 20934, 21131, 21149, 21150, 21261, 21393, 21394, 21526, 21527, 21583, 21665, 21675, 21802, 21900, 21905, 22003 (>U67660H), 22009, 22103, 22183, 22236, 22488, 22490, 22493, 22495, 22521, 22522, 22526, 22528, 22545, 22576, 22609, 22652, 22657, 22697, 22717, 31029, 31075, 31106, 31115, 31116, 31121, 31133, 31161, 33512, 50066, 50126, 50127, 80184, 80236 (>U67640H)Perkins Build List: JE21315*, 21586*, 21907*,22046, 22466*, 22472*, 22494*, 22499*, 22670, 22707*, 31053*, 33174*, 70033*, 80130*(*=U589378L)
• ProducentSparex
• Produkty powiązane40309,40313,40315,40316,40317,40318,40331,40332,40333,40334,40343,40344,40358,40360,40362,40372,40374,40386,40390,40392,40406,40419,40429,40431,40432,40454,40589,40592,40605,40608,40609,41323,41601,41884,41887,41897,41898,43766,43813,43814,44103
• Rowek z pierścieniem z aluminiowym żeberkiemNie
• Sworzeń Ø (mm)31.75
• Tariff Code8409990090
• TypPimple Bowl
• Wysokość (mm)109.43
• Wysokość kompresji (mm)61.74
• Średnica komory (mm)55.88
• Średnica otworu (mm)91.49

Zastosowanie

• Allis Chalmers160, 6040
• Landini4000, 4530, 5000, 5530, 5560, 5830, 5840, 5860, 6000, 7000, C4500, C4830, C5000, C6000, CF4830, GLOBUS 50
• Leyland245, 253
• Massey Ferguson134, 134C, 135, 135 US BUILT, 140, 145, 148, 150, 152, 154, 154-4, 155, 158, 165, 165 US BUILT, 20, 203, 205, 20B, 20C, 20E, 20F, 2135, 2200, 2203, 2205, 230, 230 US BUILT, 233, 234, 234C, 235, 240, 245, 250, 2500, 253, 254, 254-4, 255, 260, 30, 302, 304, 30B, 30D, 30E, 30H, 3165, 3303, 3305, 333, 334, 340, 342, 350, 354, 40, 40B, 50, 550, 560, 65, 65 US BUILT, 765
• PerkinsA4.203 (JD), AD3.152 (CE), AD4.203 (JE)
• Volvo400, 430

Numery OEM

• Allis Chalmers743824M91, 72080104
• JCB02130017
• John DeereAHM2188
• Landini82112, 41158059, 59618, 31083, 82137, 82111, 743824M91, 68332, 82906, 184957, 182111, 182906, 141158059, 31084, 168332
• LeylandAHM2188
• Massey Ferguson82111, 68332, 743824Z91, 743824V91, 59618, 82906, 780006, 82137, 82147, 82112, 743824M91, 745820M91, 4223940V91, 4223940M91, 41158059, 3639048M1, 734466M91, 734467M91
• Perkins82112, 82111, 68332, 59618, 82137, 82147
• VolvoPE68332
