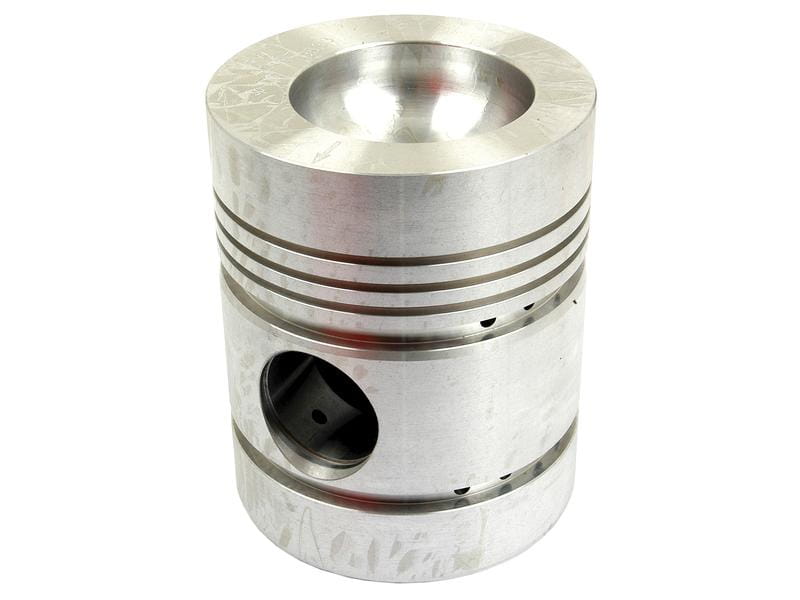

Tłok silnikowy S.40410

Tłok silnikowy Sparex S.40410

• Chamber TypeG3
• Crown TypeDish Top
• Długość tłoka, mm120.70
• Głębokość komory20.47
• ilość pierścieni5
• Korona97.69
• Perkins Build ListPerkins Build List: LD21691, 21731, 21908*, 22181, 22184, 22186, 22238, 22524, 22596, 22644, 22671, 22676, 22679, 22682, 22684, 22692, 22694, 22695, 22745, 22749, 22750, 22751, 22756, 22763, 22778, 22781, 22784, 22802, 22813, 22822, 22824, 22825, 31085, 31096, 31104, 31110, 31122, 31132, 31134, 33514, 50096, 50103, 50104, 50105, 50143, 50145, 50176, 50179, 50204, 70047, 80094, 80147 (*=U524721L>) (Engines fitted with Standard Pistons & Flame Ring Liners), LD00347, 13264*, 13516*, 13518*, 13584*, 13675*, 13750*, 13754*, 13851*, 13863*, 13883*, 13892*, 13894*, 13932*, 13938*, 13945*, 13954*, 13955*, 14420*, 14739*, 14882*, 20170, 20562, 2063, 20956, 20977, 21100, 21170, 21196, 21197, 21324, 21325, 21343, 21359, 21386, 21425, 21481, 21498, 21513, 21594, 21621, 21691, 21711, 21731, 21733, 21737, 21889, 21908*, 21937, 21974, 22043, 22044, 22051, 22052, 22151, 22152, 22181, 22184, 22186, 22238, 22242, 22281, 22420, 22426, 22468, 22469, 22475, 22483, 22484, 22485, 22496, 22498, 22524, 22532, 22557, 22573, 22574, 22580, 22596, 22602, 22620, 22634, 22640, 22644, 22671, 22676, 22679, 22682, 22684, 22692, 22694, 22695, 22721, 22724, 22745, 22749, 22750, 22751, 22756, 22763, 22778, 22781, 22784, 22802, 22813, 22816, 22818, 22822, 22824, 22825, 31085, 31096, 31104, 31110, 31122, 31132, 31134, 33514, 50096, 50103, 50104, 50105, 50107, 50143, 50145, 50148, 50176, 50179, 50204, 70047, 70071, 70093, 70101, 70111, 70115, 70119, 70121, 70124, 70147, 70152, 70160, 80094, 80133, 80147, 80167, 80174, 80185, 80231, 80239, 80271, 90012*, 90047, 90052, 90055*, 80056* (*=U524721L>) (Engines with Standard Pistons but fitted with Liners without Flame Ring)
• ProducentSparex
• Produkty powiązane40378,40396,40440,40420,40422,40423,40434,40450,40610,41372,41373,41639,41641,41889,41907,41908,41909,41939
• Rowek z pierścieniem z aluminiowym żeberkiemNie
• Sworzeń Ø (mm)34.93
• Tariff Code8409990090
• TypPlain Bowl
• Wysokość (mm)121.01
• Wysokość kompresji (mm)70.35
• Średnica komory (mm)60.40
• Średnica otworu (mm)98.48

Zastosowanie

• Landini6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, ADVANTAGE 65, ADVANTAGE 75, BLIZZARD 65, BLIZZARD 75, C6500, C6830, CF6830, REX 65, REX 75, TREKKER 65, TREKKER 70, TREKKER 75
• Massey Ferguson10, 168, 174, 174C, 175, 175 US BUILT, 178, 184, 240, 255, 261, 265, 273, 274, 274SK, 275, 283, 284, 3050, 307, 30D, 330, 362, 365, 372, 373, 373LX, 374, 375, 375E BRAZILIAN, 377, 383, 384, 387, 50, 50B, 50C, 50D, 50E, 50EX, 50H, 50HX, 565, 575, 6000, 60H, 675
• PerkinsA4.236 (LD)
• Volvo2200, 2204, 2250, 2254, T500

Numery OEM

• Ford / New Holland505469
• JCB02100007
• LandiniU5LP0035, 68301, 743110M91, 168301, 3637516M91
• Massey Ferguson3637516M91, 743110M91, 743110V91, 68301, U5LP0035, 743110Z91
• Perkins68301
• VolvoPE68301
